Bottom Bearing Hinge - SHS Steel

87L-ST

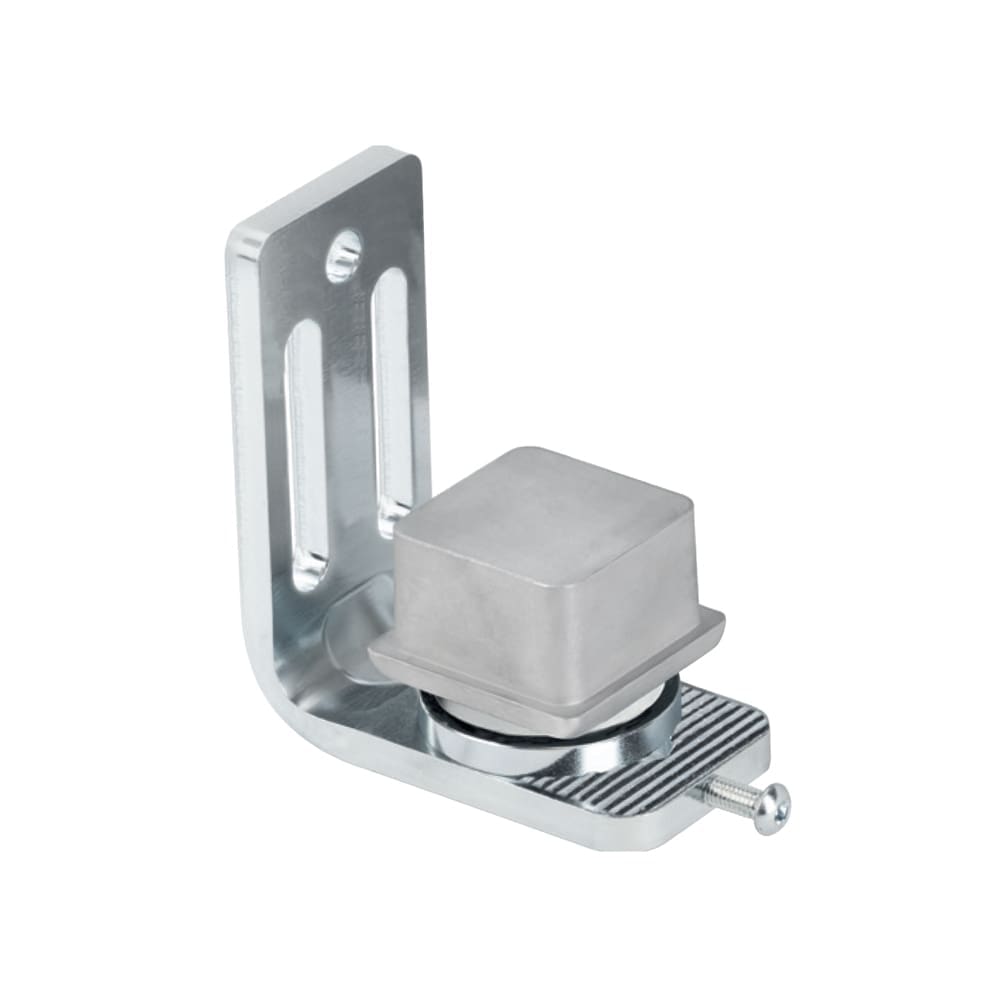

Bottom bearing hinge, right angle adjustable bracket, steel weld in insert

Interested in this product?
Add it to an enquiry form and we’ll get back to you with a quote.

Bottom Bearing Hinge – SHS Steel

Bottom bearing hinge, right angle adjustable bracket, steel weld in insert

Max Capacity

Frame Size

Clear

SKU: 87L-ST Category: Heavy Duty Hinges

Description Technical Support Specification Range Videos

Max Capacity	150 kg, 300 kg, 500 kg
Hinge Type	Bearing
Finish	Zinc
Frame Size	Suits 40mm frame, Suits 50mm frame, Suits 65mm frame

Looking for manuals or technical documents? Find all the resources related to this product here:

87L.ST Installation Instructions

Dimensional Drawing 40mm Bottom Hinge

Dimensional Drawing 50mm Bottom Hinge

Dimensional Drawing 65mm Bottom Hinge
