LIVI502-SGL
$0.01

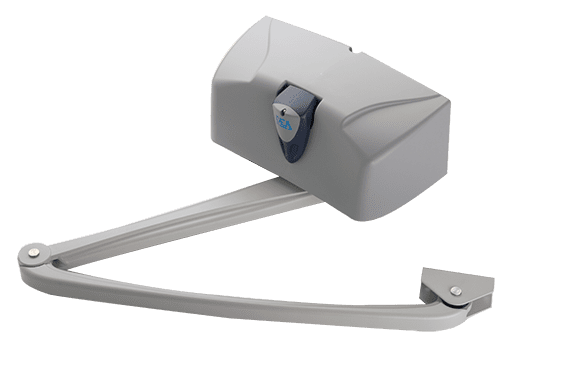

DEA Livi 502 Single with one 24V motor
The Livi 502 by DEA is a strong and fast articulated swing gate operator for gates of up to 400kg or 3m. Made in Italy by DEA, Livi 502 has the strength and reliability provided by all metal internals and is capable of opening times as low as 10sec with a 60% duty cycle. Arms ordered seperately. Three options available plus Rubber Riser elbow for use with rising hinges.
| Application | Residential |
| Power Supply | 24 V, Split Pack |
| Motor Type | Electromechanical |
| Skill Level | Pro |
| Max Gate Weight | 650 kg |
| Max Gate Length | 3.0 m |
| Max Power | 80 W |
| Operations | 35/hr, 140/24hr |
| Max Force | 260 Nm |
| Time to 90 Degrees | 10 sec. |
| Configuration | Single motor with remotes & aluminium arm, Split pack single motor with remotes & aluminium arm, Split pack single motor with remotes & steel arm |
| Duty Cycle | Medium |
| Brand | DEA |
Looking for manuals or technical documents? Find all the resources related to this product here:
DEA Automation Brochure
DEA Livi 502 Operating Instructions
DEA Livi 502 Motor Release Swap Guide
DEA LIvi 502 Limit Switch Wiring Diagram
DEA LIvi 502 Specifications
