SEA JOINT HYDRO MASTER

JOINT-MASTER

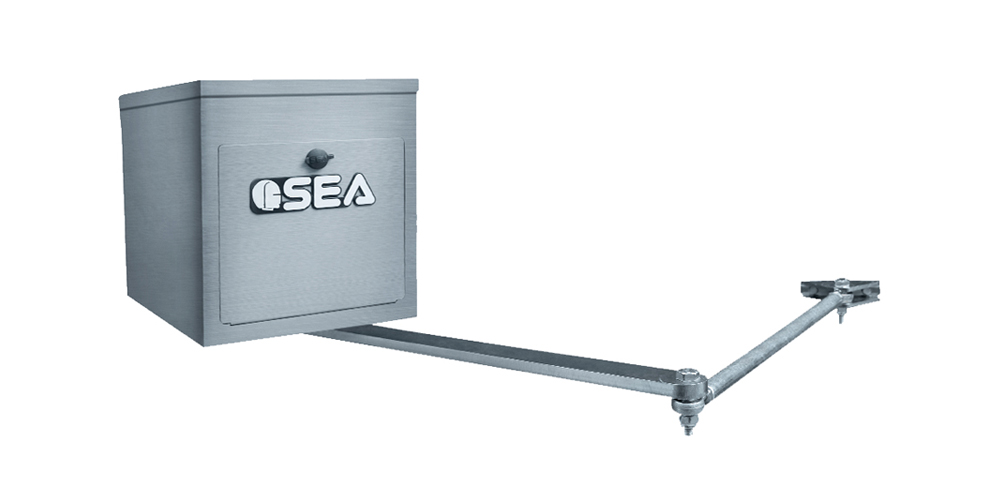

SEA Joint Hydro Master with inverter hydraulic articulated motor with steel arm

Interested in this product?
Add it to an enquiry form and we’ll get back to you with a quote.

SEA JOINT HYDRO MASTER

SEA Joint Hydro Master with inverter hydraulic articulated motor with steel arm

Orientation

Clear

Product information

Description Technical Support Specification Range Videos

Description

Manufactured in Italy by SEA, Joint is an articulated, inverter-equipped hydraulic swing gate operator for leaves up to 6m or 450kg. Must be ordered as left hand or right hand configuration.

Specification Range

Application	Industrial
Power Supply	230 V Inverter, 231 V Inverter
Motor Type	Hydraulic
Skill Level	Advanced
Max Gate Weight	450 kg
Max Gate Length	4.0 m
Max Power	310 W
Max Force	560 N
Time to 90 Degrees	8 sec.
Orientation	Master Left Hand, Master Right Hand
Duty Cycle	Intensive
Brand	SEA

Technical Support

Looking for manuals or technical documents? Find all the resources related to this product here:

JOINT HYDRO Specifications

JOINT HYDRO Installation Manual

UNIGATE Installation Manual

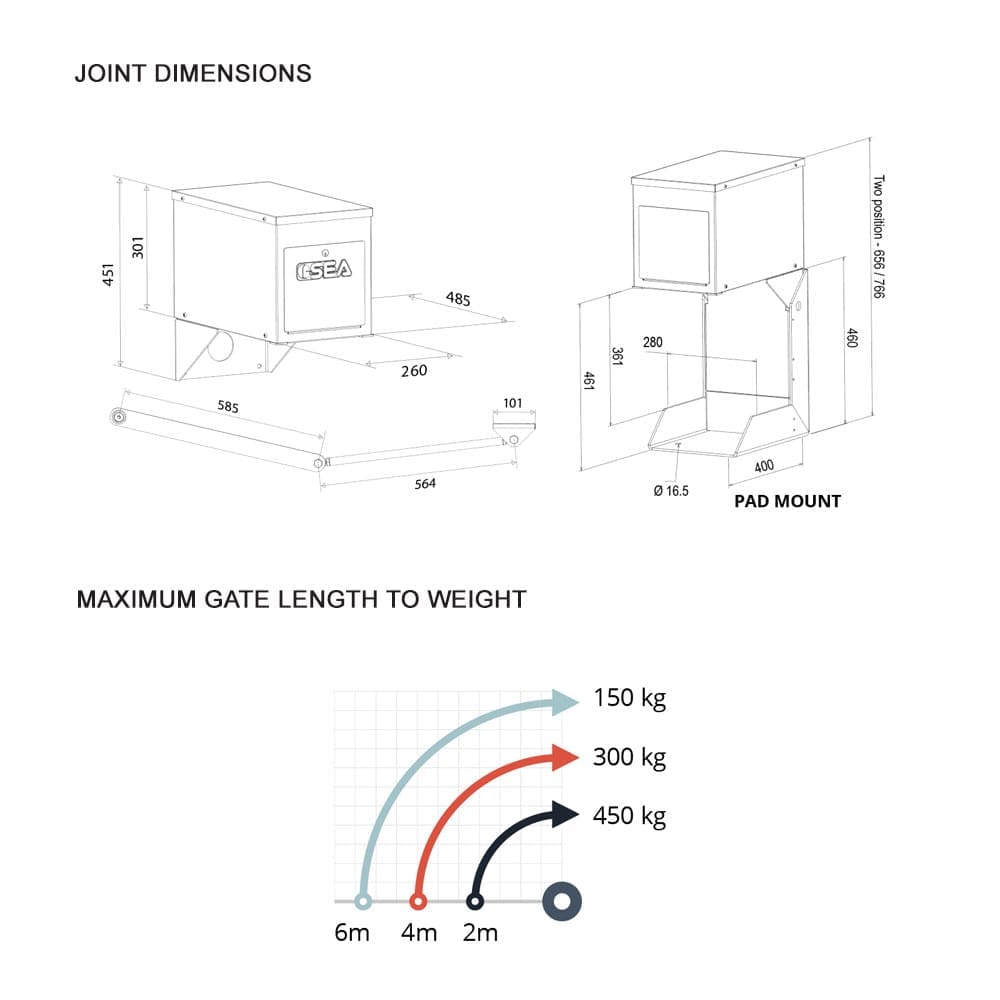

SEA Joint Dimensions

Related Products

Jolly 3 Programming Handset

Coccinella Remote – 4-channel, Long Range

Horizontal Lock

Joint Mount Base
