CARDIN SLX624
Safety-led by design. Backed by a 3-year warranty. Seamlessly connected.
Add it to an enquiry form and we’ll get back to you with a quote.
The Cardin Series SLX624 is part of Downee’s premium automation range, engineered in Italy as a complete system for residential sliding gates up to 600kg. Designed for installers who demand performance, reliability and simplicity, the SLX624 integrates all electronic and mechanical components into one compact and intelligent operator.
Powered by a robust 24V DC motor, the SLX624 delivers smooth, consistent operation at speeds of up to 15 m/min. With a 70% duty cycle, it’s built for high-use residential applications—reducing stress on the motor and gate structure while extending service life and maintaining quiet, efficient performance.
Installation is faster and smarter thanks to PlugNPlay self-programming, eliminating the need for mechanical limit switches. The self-locking electromechanical system can be installed on either side of the passageway and is suitable for both new installations and retrofit projects. An onboard LCD display with clear status indicators and a simple three-button navigation menu—available in six languages—ensures quick, confident commissioning on site.
Safety is engineered into every movement. The SLX624 features encoder-controlled positioning, anti-crush protection, automatic obstacle detection with repositioning, and soft start/stop functions to deliver smooth, controlled, and secure gate operation.
Connectivity is built in. Bluetooth app control, WiFi compatibility, and remote management capabilities allow installers to configure, monitor, and manage systems efficiently. When paired with the INTPRG-3G/WF module, full remote programming and system control is available—reducing site visits and improving long-term support.
Supplied in multiple configurations, including complete safety kits and split-pack options with external transformers, the SLX624 delivers a smarter, stronger, and more connected automation solution—backed locally by Downee.
| Brand | Cardin |
| Application | Residential |
| Max Force | 20 Nm |
| Power Supply | 24 V, Split Pack |
| Max Power | 60 W |
| Duty Cycle | 70% |
| Max Gate Weight | 600 kg |
| Gate Speed | 15m/min |
| Protection Grade | IP44 |

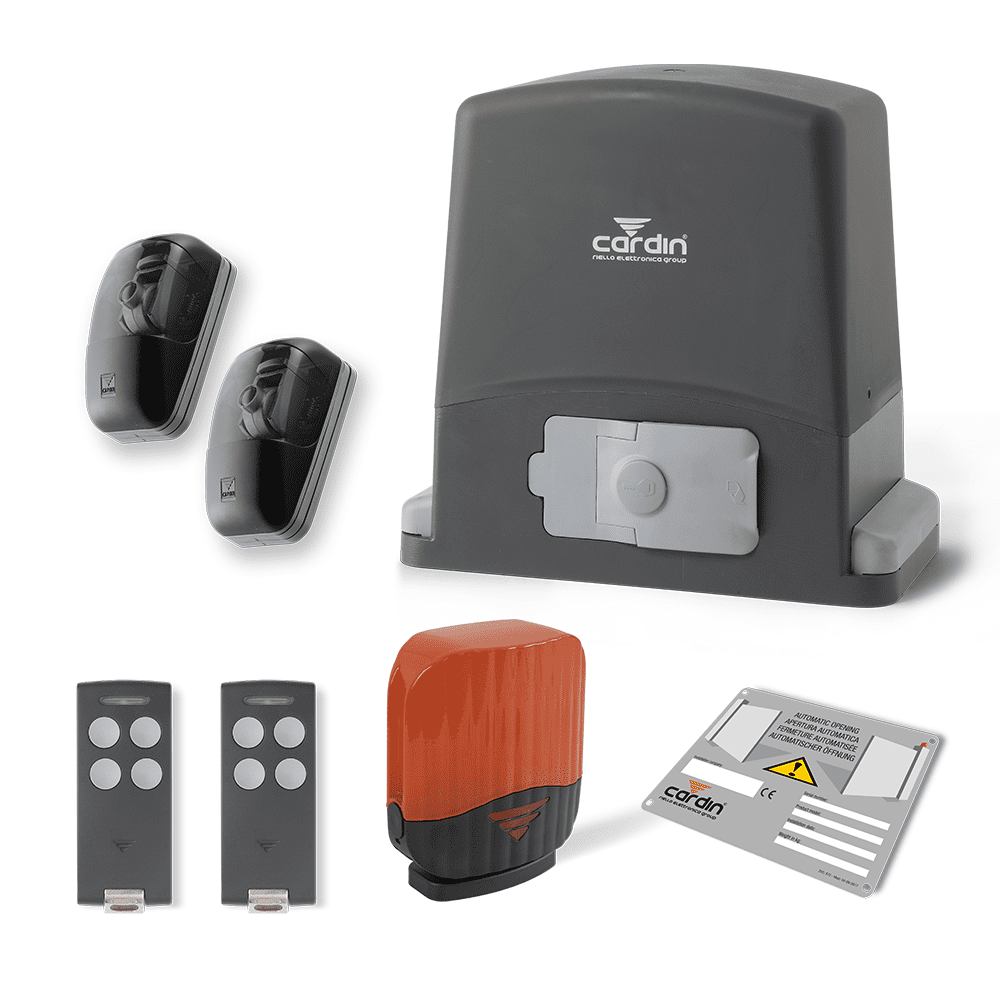

| Configuration | 600kg 24V DC Motor only, 600kg 24V DC Motor with 4CH Remotes, 600kg 24V DC Split Pack Motor with 4CH Remotes, Safety Kit with 600kg 24V DC Split Pack Motor, 4CH Remotes, Photocells, Safety Light & Warning Sign, Safety Kit with 600kg Motor, 4CH Remotes, Photocells, Safety Light & Warning Sign |
