Key Automation Rodman Double
RODMAN-DBL
Add it to an enquiry form and we’ll get back to you with a quote.
Key Automation Rodman Double
$0.01
2 x 24V Motors, Controller and Receiver, Palm Programmer, 2 x Remotes, Gates up to 5m or 600kgs
RODMAN-DBL
$0.01
2 x 24V Motors, Controller and Receiver, Palm Programmer, 2 x Remotes, Gates up to 5m or 600kgs

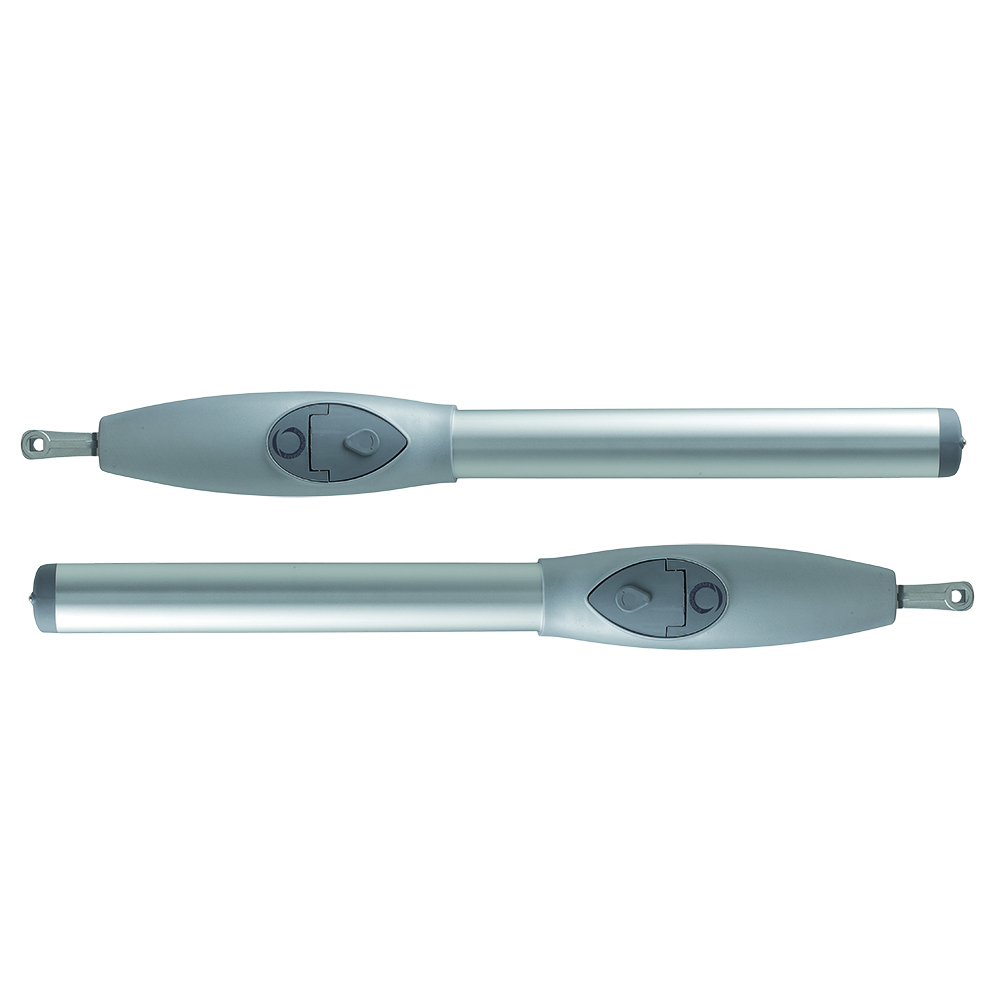

The Rodman is an electromechanical swing gate operator by Key Automation. The 24V motor is capable operating gates up to 600kg or 5m, with opening times as low as 20 seconds with a 80% duty cycle. Made in Italy, Rodman is known there as the Star 500.
Frequency | 433 MHz |
Application | Commercial |
Power Supply | 24 V, Split Pack |
Motor Type | Electromechanical |
Max Gate Weight | 600 kg |
Max Gate Length | 3 m |
Max Power | 120 W |
Max Force | 1500 N |
Time to 90 Degrees | 20 sec. |
Configuration | Double motor with photocells & remotes, Double motor with remotes, Split pack double motor with photocells & remotes, Split pack double motor with remotes |
Brand | Key Automation |
Duty Cycle | Medium |
Looking for manuals or technical documents? Find all the resources related to this product here:
RODMAN Short Cuts Guide
RODMAN Installation Manual
14A Control Unit Installation Manual
RODMAN Brochure
